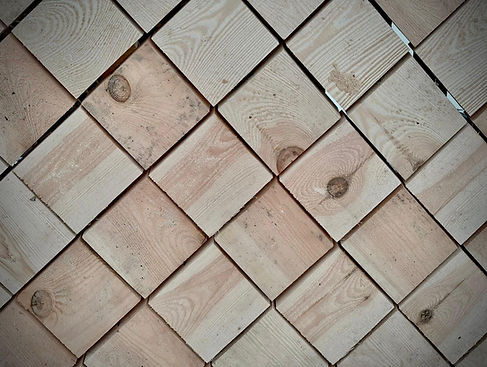

MODERN RHOMB 170

29.00 Eur/m2 +VAT 21%

Technical Information

Wood: Local spruce or pine
Thickness: 30mm
Sides: 4 sides 30 degree
Size: 170 x 170mm (visible), 186 x 186mm (full)
Seam: 7mm
Substructure: 50 x 25mm (vertical) every 125mm (8m/m2, 0.01m3/m2)
Fixation holes: Pre-drilled 2pc 4mm holes on top side
Fixation: 2 wood screws 4x40mm per shingle (65 screws/m2)
Montage speed: 2.5m2/h
​


Description

Top seller from the Modern Rhomb range. Great balance between detail/looks and price/labor. Used for the product launch building "Pavilosta II".

Design/Montage info

Modern Rhomb 170 Design and Montage Manual (pdf.)

Modern Rhomb 170 Design file (dwg.)

Galery

Modern Rhomb 150.jpeg
Modern Rhomb_Half chared (1).jpeg
Modern Rhomb_Full chared (1).jpeg
Modern Schindel_21_M_edited.jpg
